Model: ZP-LED-P20B (3L)

Rated operating voltage / UN (VAC): 100-277V

Maximum continuous working voltage / MCOV / UC (VAC) 1: 320V

Nominal discharge current /IN(KA)2:10KA

Maximum discharge current / IMAX (KA) 3: 20KA

Surge surge voltage / UOC (KV): 20KV

Connecting cable: multiple strands of soft copper wire (1.0MM2)

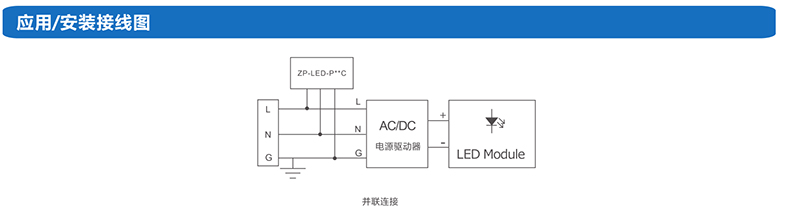

Connection method: parallel connection

Power supply system: TN

Waterproof rating: IP67

Working environment: ‘-40°C ~ +70°C

IEC 61643-11 Test Classification: TEST CLASS‖AND III

EN 61643-11 Test Classification: TYPE 2 AND 3
